Produkt-Details
Herkunftsort: China
Markenname: LHTi
Zertifizierung: ISO 9001:2015,TUV,SGS
Modellnummer: LH-Ti10
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge: 5 PCS
Preis: US dollar $17.5/kg--US dollar $39.5/kg
Verpackung Informationen: Standardexportverpackung, Sperrholzkiste draußen
Lieferzeit: 15-20 Arbeitstage
Zahlungsbedingungen: L/C, T/T, Western Union etc.
Versorgungsmaterial-Fähigkeit: 10000 Kilogramm pro Monat
Material: |
Reines Titan u. Titanlegierung |
Zulassung: |
Gr1, Gr2, Gr3, Gr4, Gr7, Gr9, Gr12, usw. |
Technik: |
Geschmiedet, bearbeitete CNC maschinell |
Standards: |
ASTM B381 |
Farbe: |
Matal grau |
Merkmal: |
Titan hat geringes Gewicht, ausgezeichnete hochfeste, ausgezeichnete Korrosionsbeständigkeit. |
Material: |
Reines Titan u. Titanlegierung |
Zulassung: |
Gr1, Gr2, Gr3, Gr4, Gr7, Gr9, Gr12, usw. |
Technik: |
Geschmiedet, bearbeitete CNC maschinell |
Standards: |
ASTM B381 |
Farbe: |
Matal grau |
Merkmal: |
Titan hat geringes Gewicht, ausgezeichnete hochfeste, ausgezeichnete Korrosionsbeständigkeit. |
Präzisionsbearbeitungsstücke für den individuellen Gebrauch
Zulassung | Chemische Zusammensetzung, Gewichtsanteil (%) | ||||||||||||
C (≤) |
O (≤) |
N (≤) |
H (≤) |
Fe (≤) |
Das ist alles. | V | Pd | Ru | Ni | - Das ist Mo. |
Andere Elemente Max. je |
Andere Elemente Max. insgesamt |
|
Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.20 | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | 0.1 | 0.4 |
Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | 0.1 | 0.4 |
Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | 0.1 | 0.4 |
Gr5 | 0.08 | 0.20 | 0.05 | 0.015 | 0.40 | 5.5 ¢6.75 | 3.5 ¢4.5 | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | 0.1 | 0.4 |
Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | - Ich weiß. | - Ich weiß. | 0.12 ̊0.25 | - Ich weiß. | 0.12 ̊0.25 | - Ich weiß. | 0.1 | 0.4 |
Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5 ¢3.5 | 2.0 ¥3.0 | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | 0.1 | 0.4 |
Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | - Ich weiß. | - Ich weiß. | 0.12 ̊0.25 | - Ich weiß. | - Ich weiß. | - Ich weiß. | 0.1 | 0.4 |
Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | 0.6 ¢0.9 | 0.2 ¢0.4 | 0.1 | 0.4 |
Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - Ich weiß. | - Ich weiß. | 0.04'0.08 | - Ich weiß. | - Ich weiß. | - Ich weiß. | 0.1 | 0.4 |
Gr23 | 0.08 | 0.13 | 0.03 | 0.125 | 0.25 | 5.5 ¢6.5 | 3.5 ¢4.5 | - Ich weiß. | - Ich weiß. | - Ich weiß. | - Ich weiß. | 0.1 | 0.1 |
Chemische Anforderungen | |||||||||||
N | C | H | Fe | O | Das ist alles. | V | Pd | - Das ist Mo. | Ni | Ti | |
Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | Ballen |
Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | Ballen |
Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5 bis 6.75 | 3.5 bis 4.5 | / | / | / | Ballen |
Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12 bis 0.25 | / | / | Ballen |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2 bis 0.4 | 0.6 bis 0.9 | Ballen |
Anforderungen an die Zugfähigkeit | |||||
Zulassung | Zuglänge ((min) | Ausfallstärke ((mm) | Ausdehnung ((%) | ||
KSI | MPa | Ksi | MPa | ||
1 | 35 | 240 | 20 | 138 | 24 |
2 | 50 | 345 | 40 | 275 | 20 |
5 | 130 | 895 | 120 | 828 | 10 |
7 | 50 | 345 | 40 | 275 | 20 |
12 | 70 | 438 | 50 | 345 | 18 |

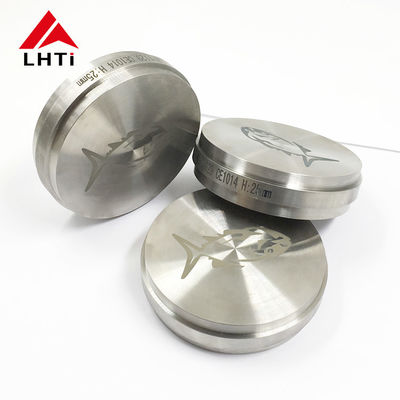

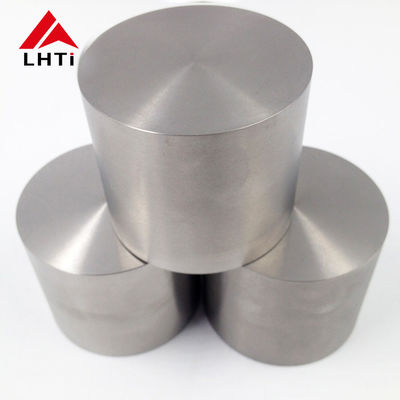

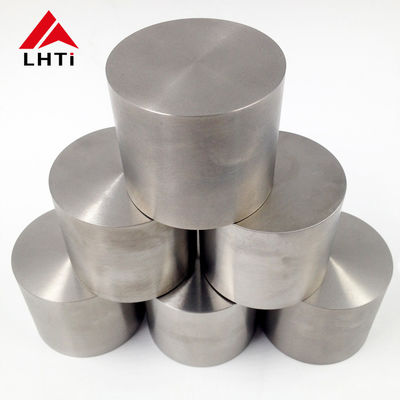

Produktbild:
